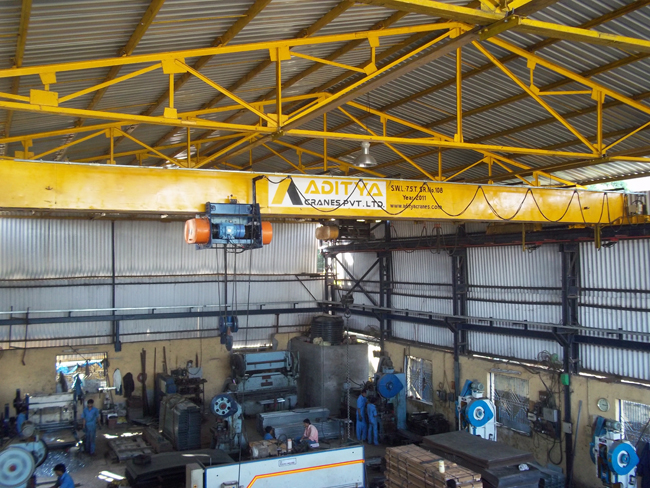

Aditya make Single Girder cranes are modular in construction using standard wire rope hoist. Compact and light weight design ensures lower building space, most optimum utilization of floor space and lower building loads.
Special Features of modular cranes :
• Light Weight and compact construction minimizing building loads and space saving
• Suitable for Light and Medium duty workshop applications
• All motors are TEFC with class F insulation
• Heavy duty cast steel rope guide
• Upper and Lower hook travel limit switch
• Additional Counter weight operated over hoist limit switch as option
• VVVF drives are available as an option
• Compact and lightweight festoon cable system
• Pendent and Radio remote control operation
 |
|
|
The EOT Crane moves over the rails placed on the top of crane runway or Gantry Girders. The crane mainly comprise of bridge girder made from rolled sections such as I beams / U beams or fabricated box section. The bridge girder is supported on two end carriages, each housing a pair of wheels. The wheels are driven by motor gearbox units. A wire rope hoist is suspended below the bridge girder. The crane can be operated through pendent station hanging from wire rope hoist or through radio remote control. The pendent station can be made to move independent of hoist movement as per customer’s choice.
The wire rope hoist comprise of rope drum made from seamless tube. Grooves are machined on rope drum for proper support to the wire rope. Cast Iron rope band and guide prevents wire rope jumping from grooves. The hoisting drive arrangement comprises of motor coupled to an oil lubricated, spur/helical gearbox that in turn provides the motion to the rope drum. An electromagnetic fail safe brake prevents accidental lowering of load in the event of power failure. Limit switch is provided to prevent over hoisting of hook block. Additional limit switch can also be provided to prevent over lowering of hook block.
The cross movement of hoist is achieved through the movement of wheels supported on the beam/ box flange. The drive to the wheels is provided through an electric motor-gearbox unit. Fail safe brake and limit switch are provided as additional features is so desired by customer.
Power supply to the wire rope hoist is through festoon cable system. The flexible cables are supported by cable hanger or cable trolleys that move on either taught wire or enclosed C track depending on customer choice.
The single girder cranes find their application mainly for capacities up to 20 MT and Span up to 25 Meters. These are commonly used for light and medium workshop duty applications. However, in rare cases the single girder cranes are also used for hot metal ladle handling as well as with grab bucket.
