Wire Rope Hoists



Aditya make Wire rope hoists are light weight yet are rugged in construction. The wire rope hoists comprised of steel rope drum that is machined accurately with grooves for supporting wire rope. The rope drum is connected to motor through totally enclosed oil lubricated spur / helical gearbox. Fail safe electromagnetic brake provided on the input side of drive to prevent accidental lowering of load in the event of power failure.

Steel wire rope with fiber core is supplied as a standard design. Stainless steel wire rope with Stainless steel sheave and bush bearings are supplied for corrosive atmosphere as per customer’s requirement.

Wire Rope Hoists

True vertical lift with 2 x 2 falls arrangement is also available in even smaller capacities as a special feature.

The trolley moves on straight track in standard design. Bogie type trolley is provided to negotiate curves when so required by customer.

Motors are Sq cage, totally enclosed fan cooled type with class F insulation. Upper and lower hook travel limit switch is provided as a standard feature. Additionally Counter weight operated over hoist limit switch is also available as an option.

In the standard design the DOL contactor starters are provided for motors. VVVF drives are supplied as per customer’s requirement.

Heavy duty cast iron rope band cum guide is provided. The cast iron rope band and guide is much more robust in construction and do not easily break as in case of plastic rope guide.

Double speed motors are also available for hoisting and CT motion as per customer’s need.


Standard Electric Wire Rope Hoist :


Technical Specification :


S.W.L
Kgs

Height
of
lift
in Mts

No. of
Falls

Speeds
mpm

Motor H.P.

Flange
Width
of
I Beam

Wire
Rope
dia

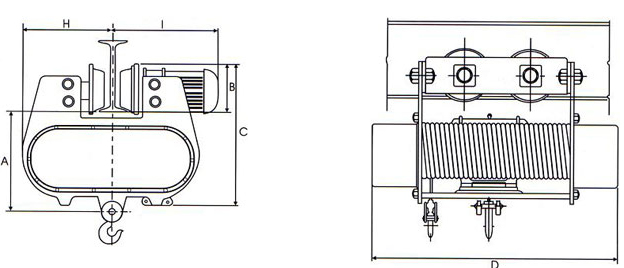

Dimension (m.m)

Approx.
Wt. in
Kgs

Hois-
ting

CT

Hois-
ting

CT

A

B

C

D

H

I

500

6

2

3

15

0.75

0.25

90-125

6

425

175

425

650

290

400

150

1000

6

2

3

15

1.5

0.25

90-140

8

550

175

425

650

290

400

170

2000

6

2

3

15

3.0

0.5

100-140

10

650

200

650

900

310

520

400

3000

6

2

3

15

5.0

1.0

125-140

12

750

200

900

1050

350

550

450

5000

6

4

3

15

7.5

1.0

140-210

12

950

200

1050

1200

400

550

550

7500

6

4

3-3.5

12

10

1.0

150-210

16

850

250

1200

1700

620

720

1000

10000

6

4

2-2.5

12

12.5

1.5

150-210

16

1000

250

1700

1700

620

720

1200

15000

6

4

2

12

15

2

225-250

16

1400

300

1850

1850

750

900

1600

20000

6

4

2

12

20

2

225-250

16

1600

325

1850

1850

750

900

2200


Note: Aditya Cranes Private Ltd. reserves the right to modify technical specifications, dimensions etc. as we continuously work on improvement
